Build your own MCP server

2.1 Identify MCP protocol guarantees and design responsibilities

MCP — the Model Context Protocol — defines a JSON‑RPC wire format plus three primitives (tools, resources, prompts) that any assistant and server can agree on.

Identify the protocol guarantees and the design decisions you must make.

1. READ the description of the three primitives in the official specification
2. OPEN the spec page at modelcontextprotocol.io/specification/latest in a browser
3. REVIEW the fixed message shapes and discovery endpoints under tools/list and resources/list

• You'll see A clear mental model of what the wire format mandates versus what you must implement yourself
• Takeaway MCP standardises the wire format and three primitives while leaving tool design, authentication and error handling to you
• Check Your assistant should decide mid‑answer whether to look up a customer record. Which primitive handles that – tool, resource, or prompt?
• Cost Free. Both SDKs are open source; nothing in this lesson needs an account.

2.2 Run an MCP tool from the Inspector

mcp dev is the test harness that launches MCP Inspector, a local UI that speaks MCP to your server so you can call tools without an assistant.

Start a local MCP server, invoke its tool through the Inspector and make it reachable to Claude Code.

Run it in the folder that holds server.py. Everything after -- is the command Claude Code runs to start your server as a subprocess over stdio; no --transport flag is needed for a local server.

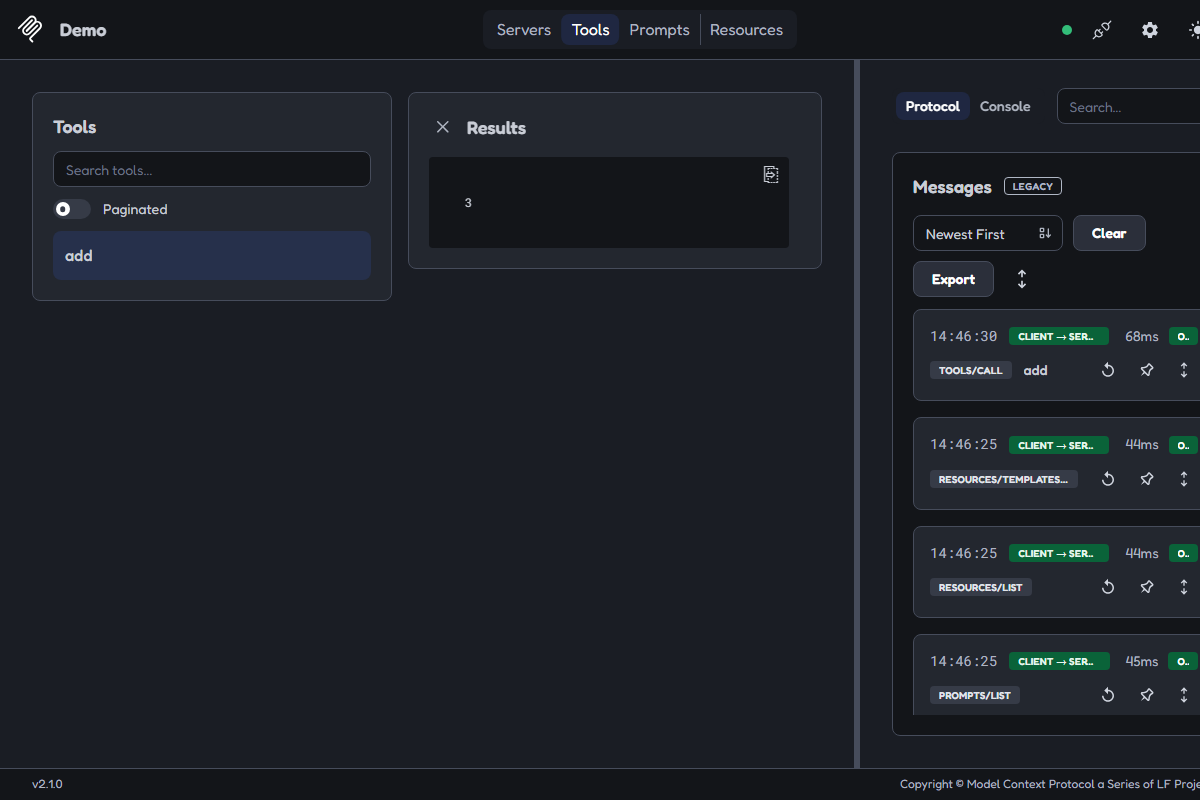

123 Enlarge

1. 1 add Your Python function, discovered over the protocol. The name is the `def`, the description is the docstring.
2. 2 Results: 3 Computed by your code. If the model had done the arithmetic there would be no TOOLS/CALL in the log.
3. 3 TOOLS/CALL add Proof the request crossed the protocol boundary and came back OK.

Best viewed on desktop — tap Enlarge to read the numbered controls.

1. OPEN a terminal, create a project folder and install the SDK with uv add "mcp[cli]"
2. CREATE server.py in that folder and paste the provided example code
3. RUN uv run mcp dev server.py, then toggle the Server card to Connected
4. IN the Inspector, open the Tools tab, click the add entry, type 1 and 2, and press Execute Tool
5. REGISTER the tool for Claude Code with claude mcp add my-demo -- uv run python server.py
6. LIST the registered tools with claude mcp list to confirm a ✔ Connected status

• You'll see The Tools tab shows the add tool, the Results panel displays 3, and the protocol log records a successful TOOLS/CALL entry
• Takeaway A type‑hinted function decorated with @mcp.tool() becomes a full tool any local assistant can invoke via claude mcp …
• Check You never wrote a JSON Schema. Where did the Inspector obtain the types for the parameters a and b?
• Cost Free. Everything here runs on your own machine — no account, no key.

2.3 Add resources and prompts to your MCP server

A resource is addressable data a client can read or attach to context, while a prompt is a canned template a human selects; both are added with decorators on the server object.

Create reusable data endpoints and human‑chosen templates alongside your tools.

Click through Tools, Resources and Prompts. In Claude Code the same three surface as a callable tool, an @-mentionable reference, and a / slash command.

1. ADD a @mcp.resource() decorator to server.py exposing a greeting function
2. ADD a @mcp.prompt() decorator below it defining a code‑review template
3. RESTART the development server with uv run mcp dev server.py
4. OPEN the Resources tab to see the new greeting endpoint listed
5. OPEN the Prompts tab to see the new code‑review template displayed

• You'll see Three populated tabs – Tools, Resources, Prompts – showing the newly added decorators
• Takeaway Choose a resource when data is attached, a prompt when a human selects it, and a tool when the model decides
• Check “List my open tickets” needs no judgement from the model. Should it be implemented as a tool or a resource?
• Cost Free — same server, same process, two more decorators.

2.4 Create a concise ticket‑status tool

A tool surface is the list of names and one‑line descriptions the model sees when selecting a tool; it is the only view the model has of your server’s capabilities.

Reduce a noisy API surface to a single, well‑described function that the model can pick correctly.

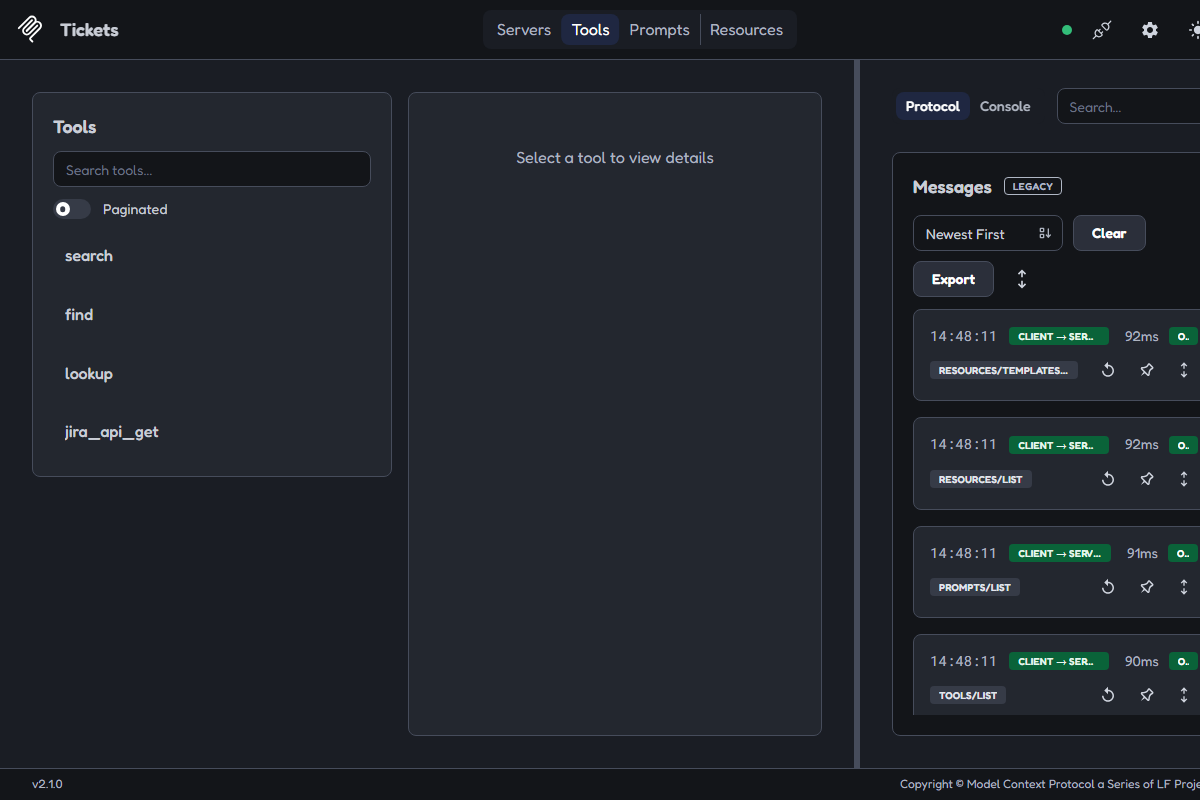

Open the Tools tab and read only the names. That is the model's whole view at selection time — your source code is not in it.

123 Enlarge

1. 1 search Named for the verb, not the answer. Nothing here says what it searches or what comes back.
2. 2 jira_api_get Named after the endpoint it wraps. The request is about a ticket; the name is about your HTTP client.
3. 3 TOOLS/LIST The single call the client makes before choosing. What it returns is the whole surface the model reasons over.

Best viewed on desktop — tap Enlarge to read the numbered controls.

1. CREATE a file called tickets.py containing four example @mcp.tool() functions
2. RUN uv run mcp dev tickets.py, open the Tools tab in the Inspector and note the list with the source file closed
3. IDENTIFY which listed tool should answer “what is the status of PROJ‑142”
4. REPLACE the four functions with a single get_ticket_status(ticket_id: str) tool and add a docstring that also states when not to use it
5. RELOAD the Inspector and verify the Tools list now shows only the appropriate entry

• You'll see Initially four indistinguishable tools, then one clearly named entry matching the query
• Takeaway Clear naming and explicit docstrings let the model choose the right tool without ambiguity
• Check Two of your tools could both plausibly answer the same request. Should you merge them or add a caveat to each docstring?
• Cost Free — a design pass, not new infrastructure. It costs you the discipline to delete tools, which is the part people skip.

2.5 Require tokens and enforce an allowlist

TokenVerifier converts a bearer token into an AccessToken; AuthSettings declares the issuer, server URL and required scopes. An allowlist is a custom pattern you code into tool bodies.

Require a valid token before any tool runs and keep the set of reachable systems in an explicit, reviewable list.

Run it against the auth-protected server with no token. The 401 is the lesson: rejection happens at the boundary, not inside your code.

1. CREATE a verifier class implementing TokenVerifier.verify_token that returns an AccessToken or None
2. INSTANTIATE the server with both token_verifier and auth arguments; omitting either should raise a startup error
3. CALL get_access_token() inside a tool to obtain caller token details for per‑tool scope checks
4. START the MCP server over HTTP and issue a request without a token (e.g. curl -i http://127.0.0.1:8000/mcp) to see the 401 response
5. WRITE an allowlist as plain text enumerating exactly which tables, paths or repositories each tool may access

• You'll see HTTP/1.1 401 Unauthorized with a WWW-Authenticate: Bearer error="invalid_token" header and a JSON body indicating the request was refused before any tool executed
• Takeaway token_verifier + AuthSettings gate who can call at all; an allowlist provides a separate, reviewable list of what each tool may touch
• Check Your server has exactly one trusted caller and you trust them completely. Do you still need an allowlist?
• Cost Free at the SDK level. The token issuer — your own or a third-party OAuth provider — is the piece that may carry infrastructure cost, separate from MCP itself.

2.6 Select appropriate error type for each failure

Plain Python exceptions are returned as tool content the model can read; MCPError aborts the JSON‑RPC request itself, ending the exchange.

Decide whether to raise a plain exception or an MCPError for each individual error condition.

Call it once against each version of the tool in the Inspector and read what comes back in the Results panel.

1. FOR each raise statement, ASK whether a smarter model could have avoided the error and note the answer in a comment
2. RAISE a plain exception for errors another call could fix, such as an invalid title or malformed date
3. RAISE MCPError for protocol‑level failures the model cannot influence, like authentication rejection or structurally invalid parameters
4. INVOKE both functions from the Inspector with identical bad input and observe the differing outcomes
5. INCLUDE the problematic value in the error message and, when possible, suggest a corrective action

• You'll see The same bad title is processed twice – once the model reads the exception and retries, once the request ends with a hard failure
• Takeaway Plain exceptions let the model recover while MCPError terminates the turn
• Check The caller's token expired halfway through a session. Should you raise a plain exception or an MCPError?
• Cost Free — this is a decision made per raise statement, not new infrastructure.

2.7 Choose a script over a server when appropriate

A script is a one‑off piece of code the assistant runs directly in its own environment, requiring no protocol, auth or persistent tool surface.

Decide whether to implement a one‑off task as a script instead of building a server.

1. ASSESS the three conditions: multiple callers, authentication/audit requirements, repeated cross‑session use
2. DETERMINE that only a single person will run the task in one session and no auth boundary is needed
3. WRITE a plain script that performs the required work
4. EVALUATE maintenance implications before committing to an API or server

• You'll see A decision matrix showing when a script suffices and when a server is required
• Takeaway Match infrastructure level to number of callers, auth needs and maintenance impact
• Check Three teams need the same capability against a system that logs every access. Should you use a script or a server?
• Cost The script costs nothing to build or retire. The server costs ongoing maintenance the moment a second caller depends on it — which is exactly the condition that justifies building it.
