6.1.1
n8n
Open-source workflow automation — the lab bench of this course
1Overview
Built by Jan Oberhauser, first released in 2019 — every node's output stays visible on the canvas, so you can follow a run step by step instead of only seeing the final result.
n8n is an open-source, node-based automation platform: chain APIs, AI models, databases and files into working pipelines without writing a backend. Each node is one building block — an HTTP request, a code block, an AI call, an IF-branch — and chains of nodes become workflows. It is the backbone of this whole course: the ten hands-on lessons below (Basics → Advanced) build up from a two-node chat agent to a multi-stage literature pipeline against PubMed. → Unlike Make and Zapier (hosted, click-together), n8n exposes the full plumbing — every API call, every error, every output — and you can self-host it for free. Fair-code licensed; the course runs a shared instance at n8n.32dots.de.
1.1Before you start
1.2After this chapter you can
→Read a workflow canvas: nodes, connections, and the execution log
→Wire a chat trigger to an AI agent and run it end to end
→Reach any REST API (PubMed, CrossRef) with the HTTP Request node
→Add branching, error handling and sub-workflows to a real pipeline
1.3Best for
Research plumbing you need to see: PubMed/CrossRef API calls with full control over headers, auth and pagination, LLM steps without glue code, and a Code node (JavaScript or Python) for anything the UI nodes cannot express.
1.4Watch out
Large workflows get visually cluttered fast — decompose into sub-workflows. Reading the execution log to debug a multi-step pipeline is a skill in itself, and self-hosting needs a server.
1.5Free vs paid
Self-hosted: free and unlimited, fair-code licensed. n8n Cloud from $20/mo. The shared course instance at n8n.32dots.de is free for everyone on the course.
2Lessons 5

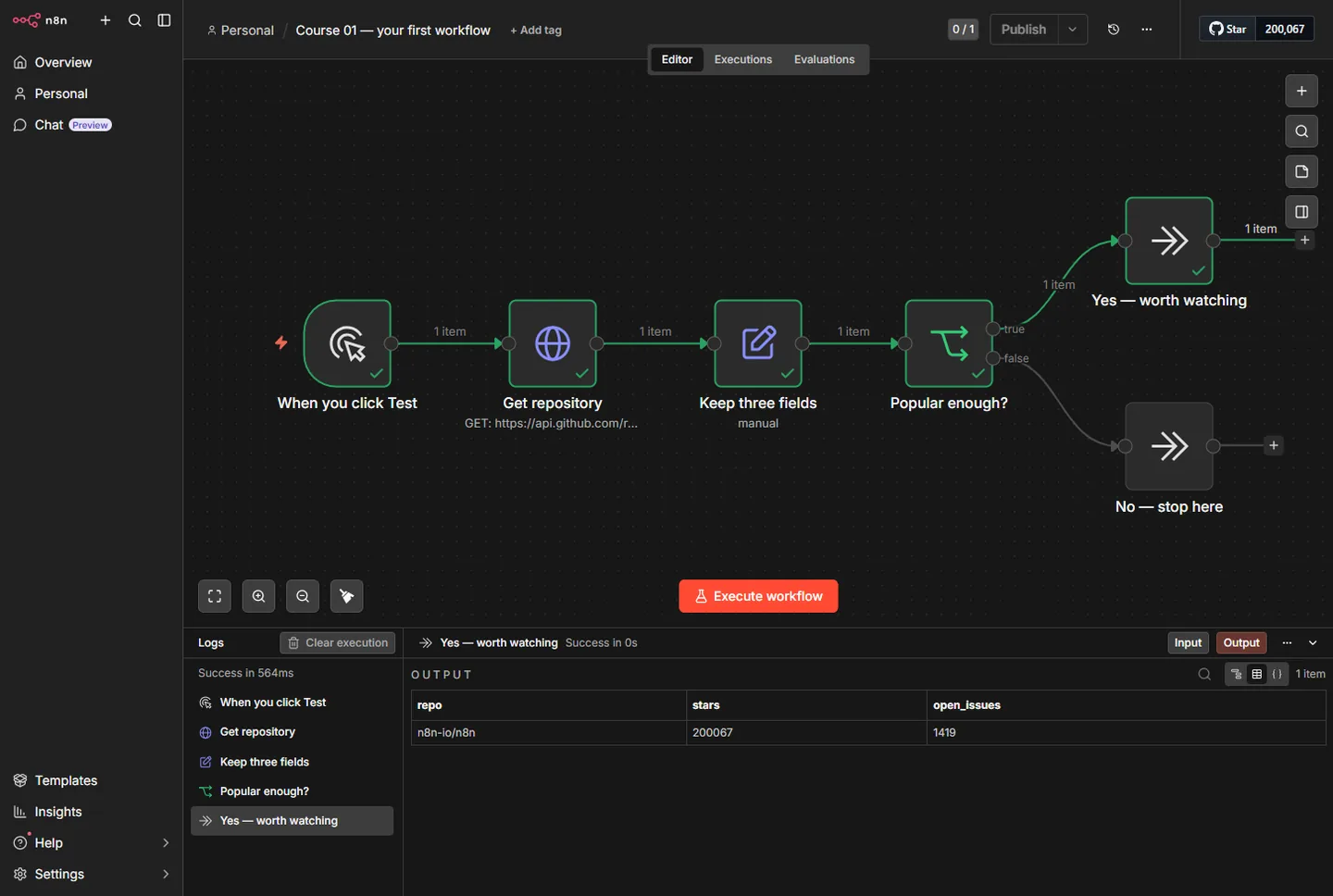

2.1 Your first workflow: fetch, shape, decide
A workflow is nodes joined by wires, and what travels the wire is items — the output table under the canvas is literally what the next node receives.
Build and run a workflow that calls an API, keeps three fields, and branches on a value
- Start n8n on your own machine with the heidelberg-ai-bench Docker Desktop setup, then open
http://localhost:5678 - Create a workflow and add When you click Test — a manual trigger, so nothing runs behind your back while you are learning
- Add an HTTP Request node with URL
https://api.github.com/repos/n8n-io/n8n. No credential needed: it is a public endpoint - Add an Edit Fields node and keep three:
repo,stars,open_issues. Drag them from the input panel rather than typing the expressions - Add an IF node testing
stars > 1000, and a No Operation node on each output so both paths are visible - Click Execute workflow, then read the output table under the canvas — that table is exactly what the next node receives
- You'll see Every node turns green with a tick, each connection reads "1 item", and the output table shows the three fields you kept
- Takeaway A workflow is nodes passing items along a wire. The item is the unit of work, not the run
- Check What does the output table under the canvas show you, and why is that the thing to read after a run?

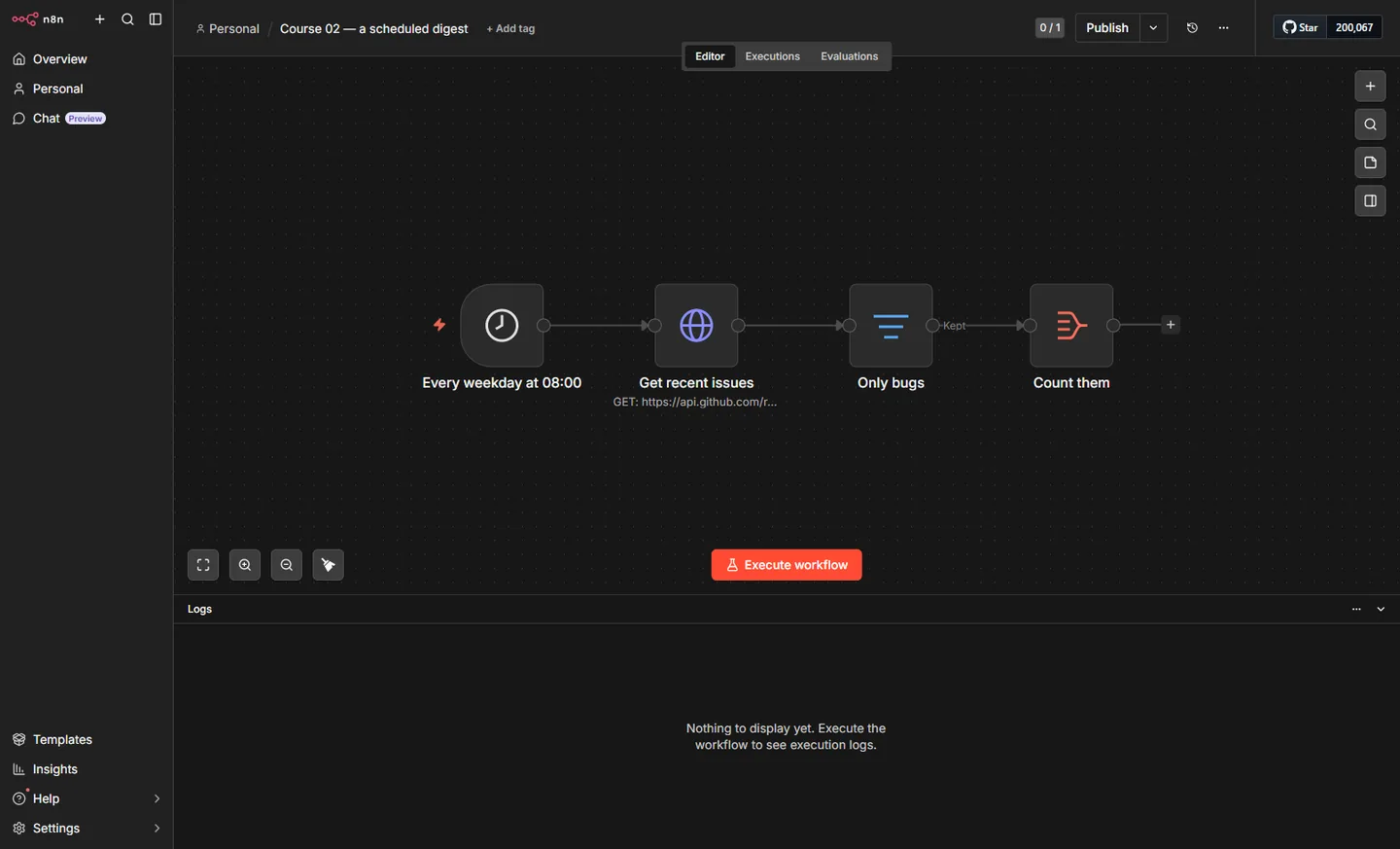

2.2 Put it on a schedule, and cut the noise
Filter keeps only the items that match and drops the rest; Aggregate collapses whatever survives into one. Both show up as the item count on the wire changing.
Replace the manual trigger with a cron schedule, then filter and aggregate what comes back
- Add a Schedule Trigger and give it a cron expression —
0 8 1-5is every weekday at 08:00 - Point an HTTP Request at
https://api.github.com/repos/n8n-io/n8n/issues?per_page=20 - Add a Filter node keeping only items whose
titlecontainsbug, then read the item count on the wire after it - Add an Aggregate node set to All Item Data — twenty items become one
- Leave it unpublished while you build. A published workflow with a schedule runs whether or not you are watching
- You'll see The trigger shows a clock instead of a pointer, and the item count on the wire drops between Filter and Aggregate
- Takeaway A Filter drops items; an Aggregate turns many items into one. The item count on the wire tells you which happened
- Check What happens to the item count between Filter and Aggregate, and why leave the workflow unpublished while you build?

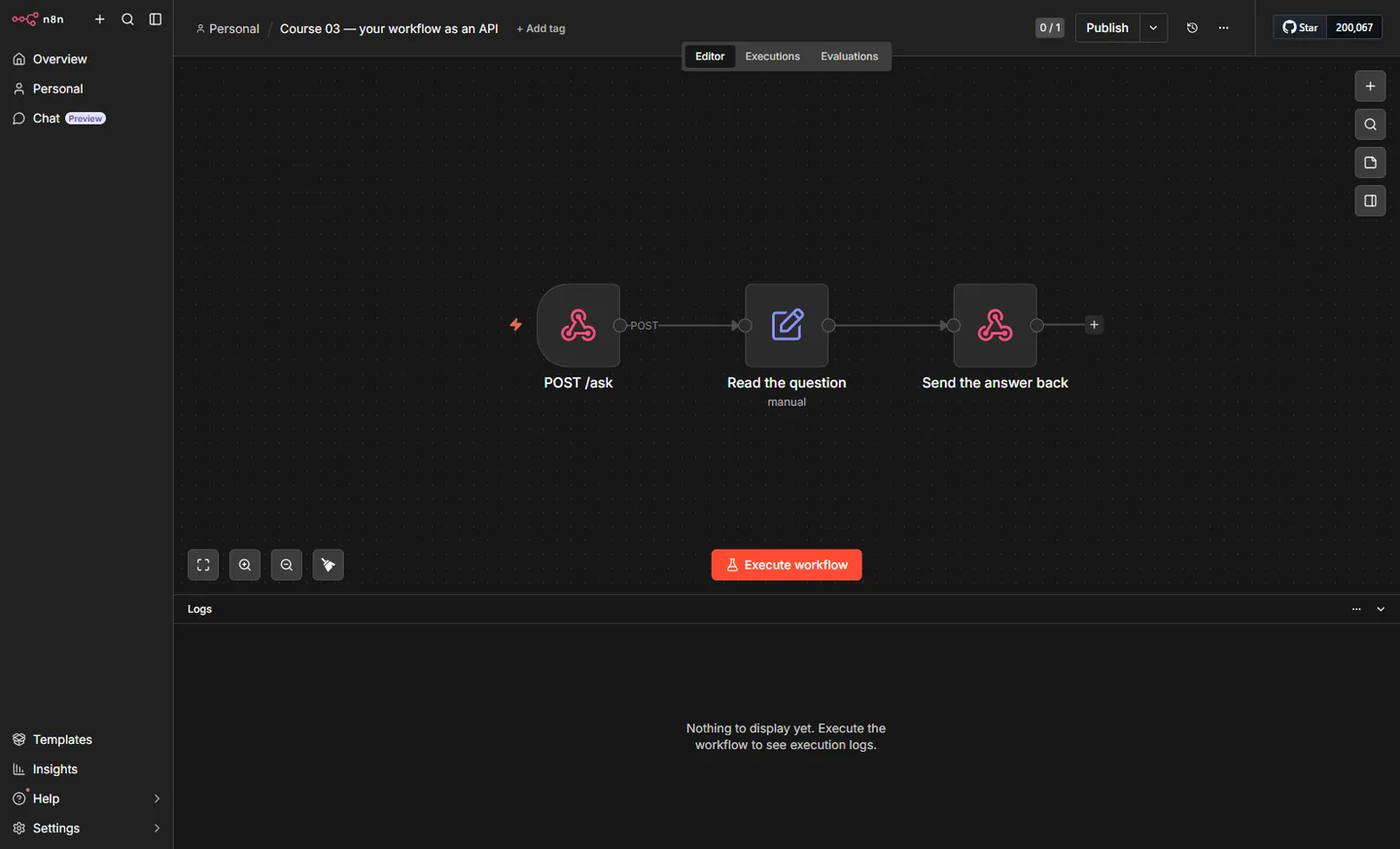

2.3 Turn a workflow into an API
A Webhook node turns the workflow into an endpoint. Its Test URL only listens while the editor is open; publishing gives you a production URL that answers without it.
Accept an HTTP POST, read its body, and send a JSON answer back
- Add a Webhook node: method POST, path
ask, and set Respond to Using Respond to Webhook node - Copy the Test URL. It only listens while the editor is open — that is what makes it a test URL
- Add an Edit Fields node reading
{{ $json.body.question }}into a field, plus{{ $now.toISO() }}as a timestamp - Add a Respond to Webhook node returning all incoming items
- Click Execute workflow, then POST to the test URL with
curland a JSON body containing aquestion - Publish the workflow and the production URL answers without the editor open at all
- You'll see A test URL you can curl, and the JSON you built coming back in the response
- Takeaway A Webhook makes a workflow callable by anything. The Respond node decides what the caller actually sees
- Check What is the difference between the Test URL and the production URL, and which node sends the answer back?

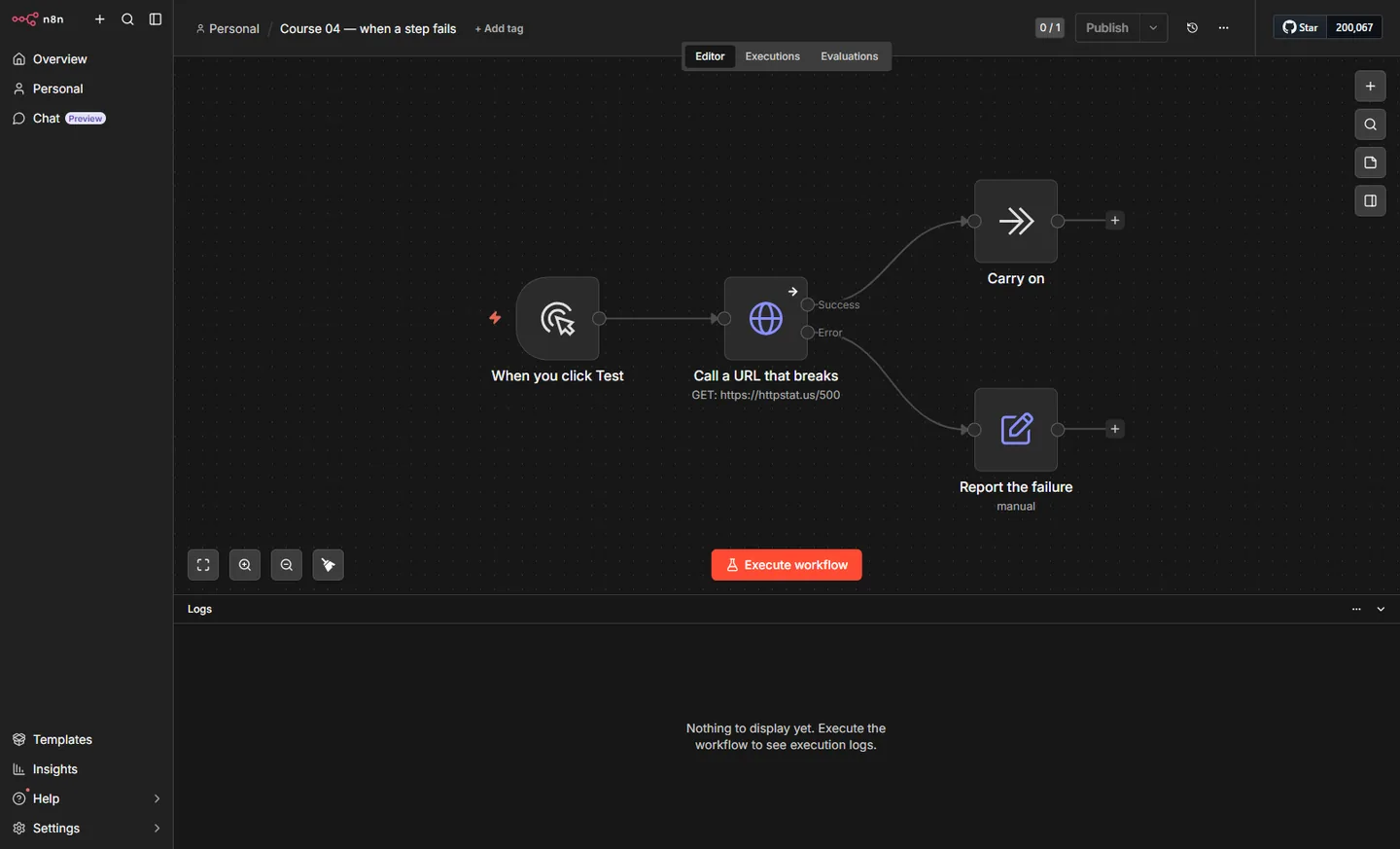

2.4 When a step fails
Setting On Error to Continue (using error output) gives a node a second output, so a failure becomes a branch you wrote instead of a dead run.
Give a node an error output so a failure becomes a branch you wrote instead of a dead run
- Add an HTTP Request pointing at
https://httpstat.us/500, which always fails - Open the node, go to Settings, and set On Error to Continue (using error output)
- The node now has two outputs. Wire Success to your normal path
- Wire Error to an Edit Fields node recording which step failed and
{{ $json.error }} - Execute it and follow the red path, then open Executions to see how the run was recorded
- You'll see The failing node grows two outputs — Success and Error — and the run finishes down the error path
- Takeaway Without an error output, a failed node stops the workflow. With one, failure is just another branch
- Check Which two outputs does the node grow, and where do you go afterwards to see how the run was recorded?

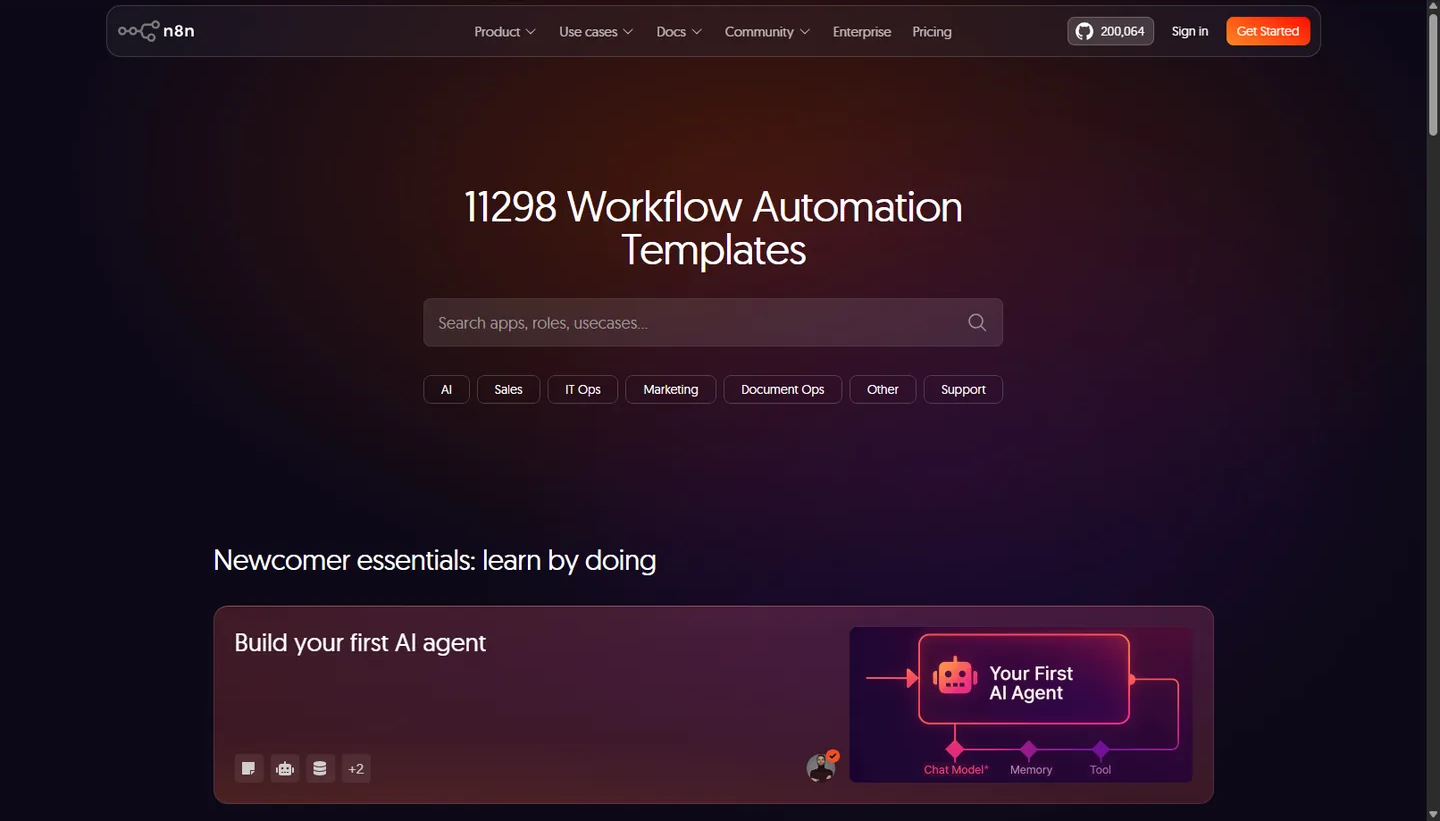

2.5 Start from 11,000 templates, not a blank canvas
The n8n.io/workflows gallery is published workflows you can import whole — the JSON arrives with every credential empty.
Find a published workflow close to your problem and import it into your own n8n
- Open n8n.io/workflows and search by app, role or use case. There were 11,298 templates when this was written
- Open one and read the canvas BEFORE importing: which node is the trigger, and where does data enter?
- Use Use for free to copy the JSON, then paste it onto an empty canvas in your own n8n
- Every credential arrives empty. Fill in only the ones the part you care about actually needs
- Delete every node you do not understand, run what is left, then add them back one at a time
- You'll see A template opens as a real canvas in your instance, with its credentials marked missing
- Takeaway Reading someone else's workflow teaches faster than building from scratch — and an imported one is yours to break
- Check What arrives empty in an imported template, and why delete the nodes you do not understand before running it?
3You’ll know it worked 133 checkable outcomes in this chapter
- ✓Lab members receive a Slack message each Monday with 10 summarized abstracts
- ✓Agent sees draft comment in ticket and can publish without editing
- ✓The final audio file is produced and published automatically after the workflow runs
- ✓The side panel shows the selected node's details (e.g., model name, prompt text, tool description)
- ✓The formatted table now includes a column for the newly added field
- ✓Submit a form with a $50 budget and see no new row added to the sheet
- ✓The node appears in the node palette and runs successfully, showing output data from the external service.
- ✓The node’s output field contains the AI‑generated reply
133 outcomes in all — one per recipe below.
